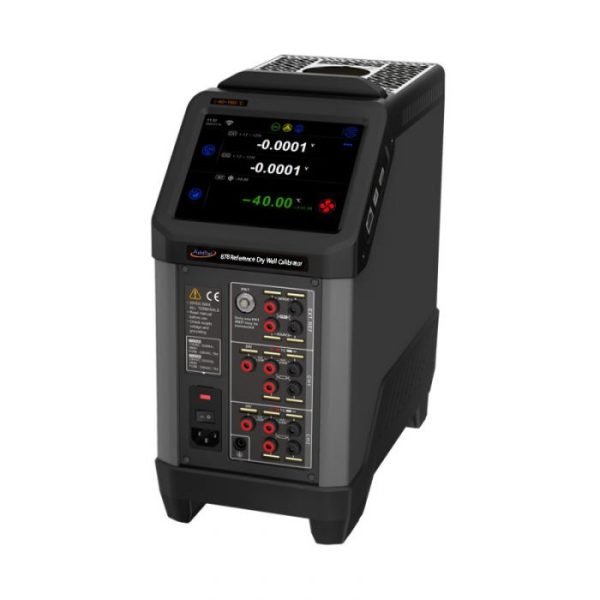

Additel ADT878-425 PC Reference Dry Well Calibrator, 33 to 425°C, 110V
Additel ADT878-425 PC Reference Dry Well Calibrator, 33 to 425°C, 110V
Additel ADT878-425 PC Reference Dry Well Calibrator
Overview
The ADT878 series dry well is one of three models spanning -40°C to 700°C, with the 878-425 covering the mid-temperature range of 33°C to 425°C at a display accuracy of ±0.2°C at Full Range. Each unit is designed for reference-level performance in accuracy, stability and uniformity, following guidelines such as Euramet cg-13.
The PC option adds a two-channel readout that measures mA, voltage, switch, RTD or thermocouple inputs from a device under test, plus a full on-board HART communicator for reading, configuring and calibrating HART transmitters. A self-calibration feature lets the internal control sensor be recalibrated automatically against an external reference PRT, and the unit stores tasks with as-found and as-left results.
Features
- Temperature range 33°C to 425°C
- Display accuracy ±0.2°C at Full Range
- Process Calibrator (PC) option measures mA, voltage, switch, RTD or thermocouple
- Full on-board HART communicator (PC option)
- Wi-Fi and Bluetooth connectivity
- Color touchscreen display
- Self-calibration of the internal control sensor
- Task creation with as-found/as-left documentation
Applications
- RTD and thermocouple sensor calibration
- HART transmitter calibration and documentation
- Process calibrator and dry well reference work
Additel ADT878-425 PC Reference Dry Well Calibrator Technical Specifications
| Temperature range (878-425) | 33°C to 425°C |
|---|---|
| Display accuracy | ±0.2°C at Full Range |
| ADT878 family range | -40°C to 700°C across three models |
| PC option DUT channels | Two channels, measuring mA, voltage, switch, RTD or thermocouple |
| HART communicator | Full on-board HART communicator (PC option) |
| Connectivity | Wi-Fi and Bluetooth capable |
| Display | Color touchscreen |
| Documentation | Task creation with as-found/as-left results |
| Reference standard | Euramet cg-13 stability, uniformity, loading and hysteresis guidelines |
Manufacturer information: ADT878 Reference Dry Well Calibrator on additel.com.
