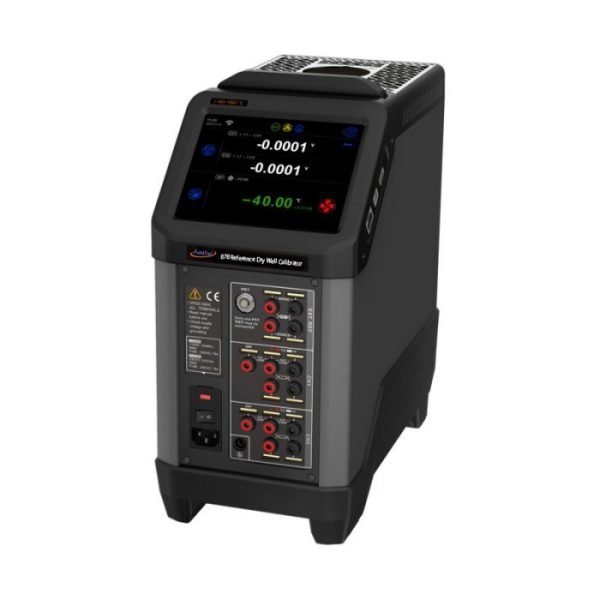

Additel ADT878PC-425-F-220V Reference Dry Well Calibrator, 35 to 425°C, Insert F, 220V, with Process Calibrator
$7,469.00
Skip to product information
Additel ADT878PC-425-F-220V Reference Dry Well Calibrator, 35 to 425°C, Insert F, 220V, with Process Calibrator
$7,469.00
Additel ADT878PC-425-F-220V Reference Dry Well Calibrator
Overview
The Additel ADT878PC-425-F-220V is a reference dry well temperature calibrator with a temperature range of 35°C to 425°C and a 220V power supply, with Insert F. The integrated Process Calibrator (PC) option enables measurement of RTDs, thermocouples, mA, voltage, and switch signals, along with full HART communication.
Features
- Fast temperature response to set points
- Two-channel readout for RTDs and thermocouples, with task documentation
- Full HART communicator to read, configure, and calibrate HART transmitters
- Optional external temperature control using an external reference PRT
- Wi-Fi and Bluetooth connectivity
- Color touch screen display
- Quick-Push connectors (PC option)
- Set point control using either the internal sensor or an external reference PRT
- Self-calibration of the internal control sensor using an external reference
Applications
Calibration laboratories, quality control departments, and field service, for calibrating sensors, transmitters, and thermocouples in pharmaceutical, food and beverage, energy, and manufacturing.
Additel ADT878PC-425-F-220V Reference Dry Well Calibrator Technical Specifications
| Temperature range | 35°C to 425°C |
|---|---|
| Power supply | 220V |
| Insert | Insert F |
| Process calibrator option | RTDs, thermocouples, mA, voltage, switch signals; full HART communication |
| Connectivity | Wi-Fi and Bluetooth |
| Display | Color touch screen |
