Amblyonix 5004 Ground Resistance Tester
Overview
A phase-locked loop with switched-filter design keeps the 5004 stable in electrically noisy environments. Four-pole terminals support soil-resistivity, touch-potential and touch/step potential measurements.
The instrument runs from 120 VAC or eight rechargeable AA batteries, inside a rugged aluminium alloy case weighing 3.1 lb. It is supplied with auxiliary electrodes, test cables, a charging power cord, manual and a NIST-traceable calibration certificate.
Features
- Resistance ranges 0-20 Ω, 0-200 Ω, 0-2000 Ω
- Resolution to 0.001 Ω
- Earth voltage measurement, 0-19.99 V at 0.01 V resolution
- Four-pole terminals for soil-resistivity tests
- Fall-of-potential method for electrodes and grids
- Phase-locked loop and switched filters for noisy sites
- Line or battery power (8 x AA rechargeable)
- Rugged aluminium alloy case, 3.1 lb
Applications
- Grounding electrode and grid resistance testing
- Soil resistivity surveys
- Touch and touch/step potential measurements
What's in the Box

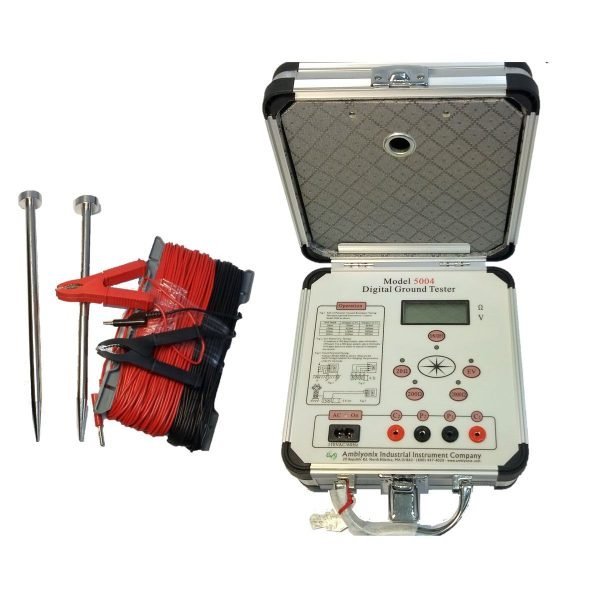

- Model 5004 ground tester
- Power cord for battery charging
- Auxiliary electrodes and test cables with connectors
- Operating manual
- NIST traceable certificate of calibration
Amblyonix 5004 Ground Resistance Tester Technical Specifications
| Resistance ranges | 0-20 Ω, 0-200 Ω, 0-2000 Ω |
|---|---|
| Resolution | To 0.001 Ω |
| Test current | 10 mA on 20 Ω range; 1 mA on 2000 Ω range |
| Resistance accuracy | ±3% ±1 digit (20 Ω); ±1.5% ±1 digit (200/2000 Ω) |
| AC voltage range | 0-19.99 V, 0.01 V resolution |
| Voltage accuracy | ±3% ±1 digit |
| Operating environment | 32 to 104 °F at up to 85% RH |
| Power | 120 VAC ±10%, 60 Hz or 8 x rechargeable AA cells |
| Dimensions | 8.73 x 7.93 x 4.2 in |
| Weight | 3.1 lb |
Manufacturer information: Model 5004 on amblyonix.com.
