Ametek DM-T-50 Deadweight Tester, Dual Column, 10 to 5,000 psi
$5,880.00

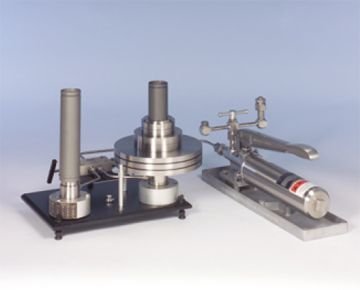

Ametek DM-T-50 Deadweight Tester
Overview
The DM-T-50 belongs to AMETEK's Type T family of re-entrant piston/cylinder deadweight testers. Applying test fluid to both the inside and outside of the cylinder reduces piston clearance as pressure rises, which lowers fluid leakage and lengthens float time during a test.
The tester is built for daily industrial as well as laboratory use, with 300-series stainless steel and Monel wetted parts, a lever-actuated dual-volume hand pump, and non-magnetic die-cast alloy weights. Each unit is supplied NIST traceable, calibrated to standard gravity.
Features
- Dual ranges 10 to 500 psi and 100 to 5,000 psi
- Instant range change via crossover valve, no piston change
- Accuracy 0.1% of indicated pressure, NIST traceable
- Re-entrant piston/cylinder reduces leakage and extends float time
- Overhung weight carrier lowers side thrust and friction
- Lever-actuated dual-volume hand pump
- Wetted parts 300-series stainless steel and Monel
- Water/alcohol or oil pressure medium
Applications
- Calibration of pressure gauges, indicators and recorders
- Laboratory and field pressure standards work
- Manufacturing floor calibration of transmitters
What's in the Box
- Hydraulic pump
- Dual column assembly with pistons
- Weight set
- Tools, manifold, adapters and tubing
- NIST traceable certificate
- Instruction manual
Ametek DM-T-50 Deadweight Tester Technical Specifications
| Type | Hydraulic re-entrant piston gauge, dual column |
|---|---|
| Low range | 10 to 500 psi, 5 psi increments |
| High range | 100 to 5,000 psi, 50 psi increments |
| Piston area | 0.10 in² (low), 0.01 in² (high) |
| Accuracy | 0.1% of indicated pressure |
| Pump | Lever action, dual volume |
| Fill fluid | Distilled water/alcohol mix or oil |
| Wetted parts | 300-series stainless steel, Monel |
| Test connections | 1/4 in and 1/2 in NPT union type |
| Weight material | Hard non-magnetic die-cast alloy |
| Pump weight | Approx. 20 lb |
| Dual column weight | Approx. 35 lb |
Manufacturer information: Type T Deadweight Testers on ametekcalibration.com.
