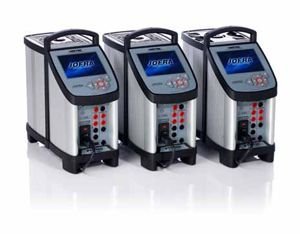

Ametek Jofra PTC-660 A Temperature Calibrator, 33 to 660°C
$5,426.00
Skip to product information
Ametek Jofra PTC-660 A Temperature Calibrator, 33 to 660°C
$5,426.00
Ametek Jofra PTC-660 A Temperature Calibrator
Overview
The A version has no reference or device-under-test inputs: the block is calibrated as a unit with a traceable certificate, and sensors under test are read with their own instrument. The color display, USB port and JofraCal software handle set points, auto stepping and documentation.
The PTC-660 uses active dual-zone temperature control for excellent well homogeneity, and a heat shield comes standard to protect the user at high temperatures. Intelligent STS reference sensors remain available as accessories if the workflow later moves to a B or C version.
Features
- 33 to 660°C (91 to 1220°F) range
- ±0.30°C accuracy from 33 to 420°C; ±0.50°C above (internal reference)
- ±0.15°C with external STS-150 reference sensor
- ±0.04°C stability
- Heats to 660°C in 20 minutes; cools to 100°C in 36 minutes
- Active dual-zone temperature control
- Color display with auto stepping
- USB communication with JofraCal software
Applications
- Verification of thermocouples and RTDs in industrial service
- Sanitary sensor checks in food and pharmaceutical plants
- Routine calibration of temperature transmitters
What's in the Box
- PTC-660 dry-block calibrator
- Mains power cable
- Traceable calibration certificate
- Tool for insertion tubes
- Heat shield
- USB stick with manual and JofraCal software
- USB cable
Ametek Jofra PTC-660 A Temperature Calibrator Technical Specifications
| Temperature range | 33 to 660°C (91 to 1220°F) at 23°C ambient |
|---|---|
| Accuracy (internal ref) | ±0.30°C (33 to 420°C); ±0.50°C (420 to 660°C) |
| Accuracy (external STS-150) | ±0.15°C (±0.27°F) |
| Stability | ±0.04°C (±0.072°F) |
| Heating time | 33 to 660°C in 20 minutes |
| Cooling time | 660 to 100°C in 36 minutes; 100 to 50°C in 15 minutes |
| Time to stability | 10 minutes (typical) |
| Resolution / units | 1, 0.1 or 0.01; °C, °F or K |
| Sensor inputs | None (A version) |
| Control | Active dual-zone heating and cooling |
| Communication | USB; JofraCal software |
Manufacturer information: PTC series datasheet on ametekcalibration.com.
