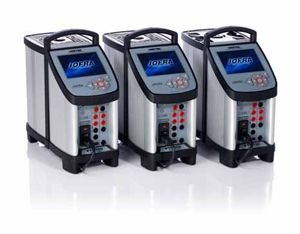

Ametek Jofra PTC-660 B Temperature Calibrator, 33 to 660°C
$6,993.00
Skip to product information
Ametek Jofra PTC-660 B Temperature Calibrator, 33 to 660°C
$6,993.00
Ametek Jofra PTC-660 B Temperature Calibrator
Overview
B models also provide switch test and auto stepping functions, with results shown on the color display and documented through JofraCal. Because the reference sensor carries its calibration data in an intelligent plug, swapping sensors does not disturb traceability.
The 660 model reaches 660°C in 20 minutes and cools below 100°C in 36 minutes, and a heat shield ships as standard for high-temperature work. The unit arrives with a multi-hole insert and the standard PTC delivery of cables, tools and software.
Features
- 33 to 660°C (91 to 1220°F) range
- ±0.15°C accuracy with external STS-150 reference sensor
- 4-wire true-ohm RTD reference input
- Device-under-test input for direct sensor reading
- ±0.04°C stability with active dual-zone control
- Switch test and auto stepping functions
- Plug-and-play intelligent reference sensors
- USB communication with JofraCal software
Applications
- Calibration of RTDs, thermocouples and transmitters
- Switch and thermostat verification with the switch test
- Documented plant temperature calibrations via JofraCal
What's in the Box
- PTC-660 B dry-block calibrator
- Mains power cable
- Traceable certificate (temperature performance)
- Traceable certificate (reference input)
- Traceable certificate (device-under-test input)
- Tool for insertion tubes
- Heat shield
- USB stick with manual and JofraCal software
- USB cable
- Test cables (2 red, 2 black)
Ametek Jofra PTC-660 B Temperature Calibrator Technical Specifications
| Temperature range | 33 to 660°C (91 to 1220°F) at 23°C ambient |
|---|---|
| Accuracy (internal ref) | ±0.30°C (33 to 420°C); ±0.50°C (420 to 660°C) |
| Accuracy (external STS-150) | ±0.15°C (±0.27°F) |
| Stability | ±0.04°C (±0.072°F) |
| Reference input | 4-wire RTD true-ohm, ±(0.003% of reading + 0.0007% FS) |
| Device-under-test input | Thermocouple and RTD inputs (B version) |
| Heating time | 33 to 660°C in 20 minutes |
| Cooling time | 660 to 100°C in 36 minutes; 100 to 50°C in 15 minutes |
| Time to stability | 10 minutes (typical) |
| Resolution / units | 1, 0.1 or 0.01; °C, °F or K |
| Communication | USB; JofraCal software |
Manufacturer information: PTC series datasheet on ametekcalibration.com.
