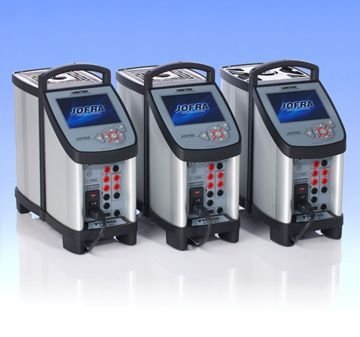

Ametek Jofra PTC155B115B Temperature Calibrator, -25 to 155°C Dry-Block, Model B, 115 V, Imperial Insert Set
Ametek Jofra PTC155B115B Temperature Calibrator, -25 to 155°C Dry-Block, Model B, 115 V, Imperial Insert Set
Ametek Jofra PTC155B115B Temperature Calibrator
Overview
The PTC series uses active dual-zone heating: the lower zone ensures even heat distribution across the calibration zone while the upper zone compensates for heat loss from the sensor under test and the open top. Stability on the PTC-155 is ±0.01°C, with accuracy of ±0.06°C using an external STS reference sensor or ±0.18°C on the internal reference.
The model code PTC155B115BSIXXXXXXFXXXX decodes as PTC-155, USA 115 V mains cable, model B, imperial insert set SIX (holes from 1/8″ to 1/2″), no user interface option package, traceable calibration certificate (code F) and standard protective case. Intelligent STS reference sensors store their own calibration data for true plug-and-play use.
Features
- Temperature range -25 to 155°C (-13 to 311°F)
- Accuracy ±0.06°C with external STS reference sensor
- Accuracy ±0.18°C with internal reference sensor
- Stability ±0.01°C; radial homogeneity 0.01°C
- Active dual-zone heating technology
- Model B: reference sensor and sensor-under-test inputs
- Imperial multi-hole insert set, 1/8″ to 1/2″ holes
- 5.7″ color VGA display, USB 2.0 communication
- Traceable calibration certificate included
- Lightweight design, 10.3 kg with carrying case
Applications
- Calibration of RTDs, thermocouples and transmitters
- Thermostat and thermoswitch testing
- Temperature point checks in pharmaceutical and food plants
Ametek Jofra PTC155B115B Temperature Calibrator Technical Specifications
| Model | PTC-155, variant B (full model) |
|---|---|
| Mains cable | B: USA/Canada, 115 V (90-127 V) |
| Temperature range | -25 to 155°C / -13 to 311°F |
| Accuracy, external STS sensor | ±0.06°C / ±0.11°F |
| Accuracy, internal reference | ±0.18°C / ±0.32°F |
| Stability | ±0.01°C / ±0.018°F |
| Radial homogeneity | 0.01°C |
| Well diameter / immersion depth | 26 mm / 160 mm |
| Heating time | 4 min (-25 to 23°C); 12 min (23 to 155°C) |
| Power consumption | 400 W max |
| Interface | USB 2.0 device port |
| Insert set | SIX: 3 imperial multi-hole inserts, 1/8″ to 1/2″ |
| Certificate | Code F: traceable to international standards |
| Weight / dimensions | 10.3 kg / 362 x 171 x 363 mm |
Manufacturer information: PTC series datasheet on ametekcalibration.com (PDF).
