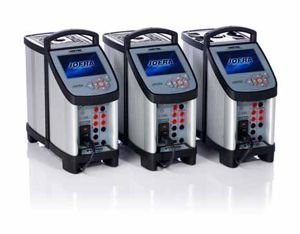

Ametek Jofra PTC155B115BM06XXXXFCX Temperature Calibrator, -25 to 155°C, 115 VAC, M06 Insert
Ametek Jofra PTC155B115BM06XXXXFCX Temperature Calibrator, -25 to 155°C, 115 VAC, M06 Insert
Ametek Jofra PTC155B115BM06XXXXFCX Temperature Calibrator
Overview
The PTC155B115BM06XXXXFCX is the B version of the AMETEK JOFRA PTC-155 professional dry-block temperature calibrator, covering -25 to 155°C (-13 to 311°F). The B model carries both a reference sensor input and a sensor-under-test input, so the instrument can read an external JOFRA STS reference probe and the device under test at the same time, with 4-20 mA transmitter input including a 24 V loop supply.
Its active dual-zone block controls the upper and lower heating zones independently, which keeps homogeneity in the calibration zone close to that of a liquid bath and removes the need for extra insulation of the sensor under test. This order code decodes as 115 VAC power with a US/Canada cord, M06 multi-hole insert (1/4, 4 mm, 3/16, 1/8 and 3/8 in holes), F traceable calibration certificate and CX protective carrying case. A stability indicator with countdown timer, USB communication, JOFRACAL software and a free-piston Stirling cooler (FPSC) heat pump complete the package.
Features
- Dry-block range -25 to 155°C (-13 to 311°F)
- B model: reference sensor input plus sensor-under-test input
- Accuracy ±0.18°C with internal control; ±0.06°C with external STS reference sensor
- Stability ±0.01°C; radial homogeneity 0.01°C
- Active dual-zone block for bath-like temperature homogeneity
- FPSC cooling technology, 155°C down to 23°C in about 10 minutes
- Stability indicator with countdown and user-set criteria
- USB port and JOFRACAL calibration software
Applications
- Calibration of RTDs, thermocouples, transmitters and temperature switches
- On-site calibration routines with work orders uploaded to the calibrator
- Verification of mechanical and liquid-filled sensors without extra insulation
Ametek Jofra PTC155B115BM06XXXXFCX Temperature Calibrator Technical Specifications
| Temperature range | -25 to 155°C (-13 to 311°F) |
|---|---|
| Model version | B (reference sensor input + sensor-under-test input) |
| Accuracy, internal (A/B/C) | ±0.18°C |
| Accuracy, external STS reference (B/C, 12 months) | ±0.06°C |
| Stability | ±0.01°C (after 15 min, 30 min measurement) |
| Radial homogeneity | 0.01°C |
| Resolution | 1° / 0.1° / 0.01°, user-selectable |
| Heating time | 23 to 155°C in approx. 12 minutes |
| Cooling time | 155 to 23°C in approx. 10 minutes (FPSC) |
| Sensor-under-test input | RTDs, thermocouples, 4-20 mA transmitters incl. 24 VDC loop supply |
| RTD reference input | 4-wire RTD with true-ohm measurement |
| Power supply | 115 VAC, 60 Hz (US deliveries); US/Canada power cord |
| Order-code options | M06 multi-hole insert; F traceable certificate; CX protective carrying case |
Manufacturer information: PTC series on ametekcalibration.com.
