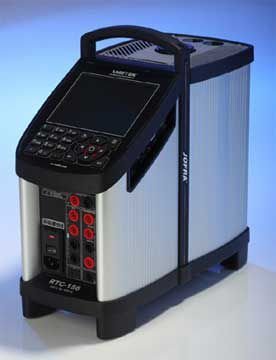

Ametek Jofra RTC-156 Reference Temperature Calibrator, -30 to 155°C, Model A, 115 VAC, M05 Multi-Hole Insert
Ametek Jofra RTC-156 Reference Temperature Calibrator, -30 to 155°C, Model A, 115 VAC, M05 Multi-Hole Insert
Ametek Jofra RTC-156 Reference Temperature Calibrator
Overview
The RTC-156 belongs to the Jofra RTC series of reference temperature calibrators, built around an active dual-zone heating block that keeps the calibration zone homogeneous from the bottom of the well to the open top. The MVI mains-variance immunity circuit stabilizes the temperature regulator against fluctuating shop power.
This unit decodes as an RTC-156 model A (basic version without sensor inputs) with 115 VAC supply, USA/Canada mains cable, M05 multi-hole insert and solid protective carrying case with trolley. USB communication, user-selectable resolution down to 0.001°C and a 5.7-inch color VGA display are standard on all RTC models.
Features
- Temperature range -30 to 155°C (-22 to 311°F)
- Stability ±0.005°C; accuracy ±0.10°C with internal reference sensor
- Active dual-zone heating block
- MVI mains-variance immunity
- USB communication and firmware updates
- 5.7-inch color VGA display, resolution to 0.001°C
- Unit weight only 10.5 kg (23.2 lb)
Applications
- Sensor and transmitter calibration in plants and labs
- Sanitary and liquid-filled sensor calibration
- Quality and metrology department verification work
What's in the Box
- RTC-156 model A calibrator with M05 multi-hole insert
- Solid protective carrying case with trolley
Ametek Jofra RTC-156 Reference Temperature Calibrator Technical Specifications
| Temperature range (23°C ambient) | -30 to 155°C (-22 to 311°F) |
|---|---|
| Accuracy with internal reference sensor (models A, B, C) | ±0.10°C |
| Stability | ±0.005°C (measured 30 min after stability indicator) |
| Radial homogeneity | 0.01°C |
| Resolution (user selectable) | 0.001°C |
| Heating time, 23 to 155°C | 15 minutes |
| Cooling time, 155 to 100°C | 4 minutes |
| Time to stability (approx.) | 10 minutes |
| Immersion depth | 160 mm (6.3 in) |
| Insert size | 30 x 150 mm |
| Power | 115 VAC, 60 Hz (US deliveries) |
| Communication | USB |
| Weight | 10.5 kg (23.2 lb) |
| Model version | A (basic model, without input) |
Manufacturer information: RTC-156/157 datasheet on ametekcalibration.com.
