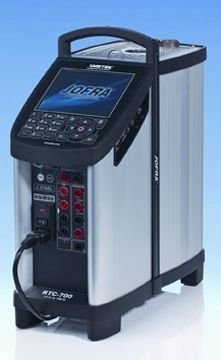

Ametek Jofra RTC700A115BNONXXXXXXFXXXCT Temperature Calibrator, -100 to 1200°C

Ametek Jofra RTC700A115BNONXXXXXXFXXXCT Temperature Calibrator

Overview

The Ametek Jofra RTC700A115BNONXXXXXXFXXXCT is a dry-well temperature calibrator for industrial and laboratory use, covering -100°C to 1200°C with accuracy of ±0.05°C. It includes patent-pending DLC technology and an external reference input.

Features

• Response time of less than 1 second
• Full-color VGA display with user-configurable interface
• Patent-pending DLC technology for homogeneity and loading compensation
• External reference input for connecting an external reference sensor
• Intelligent connectors load coefficients without manual entry
• USB connectivity with JOFRACAL software for data logging and analysis
• Rugged construction for industrial environments

Applications

Calibrating temperature sensors, verifying temperature control systems, and troubleshooting temperature-related issues in pharmaceutical, food processing, automotive, and aerospace industries, as well as laboratory calibration and metrology.

What's in the Box

• RTC dry-block calibrator (user specified)
• Mains power cable (user specified)
• Traceable certificate of temperature performance
• Tool for insertion tubes
• Heat shield
• JOFRACAL USB cable
• Manual

Ametek Jofra RTC700A115BNONXXXXXXFXXXCT Temperature Calibrator Technical Specifications
