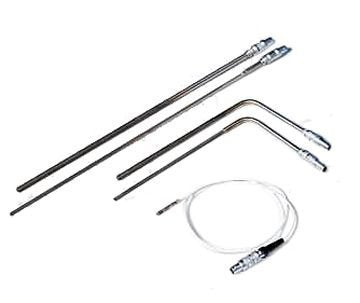

Ametek Jofra STS100A250DG Probe, Pt100 Reference Probe -150 to 650°C
$925.00
Ametek Jofra STS100A250DG Probe
Overview
The STS-100 series is designed for fast, traceable calibration and temperature measurement with JOFRA DTI-1000, DTI050 and compatible dry-block calibrators. Each sensor is supplied with a certificate stating the sensor coefficients, enabling the DTI-1000's certified data pairs linearity setup.
The solid 4 mm probe offers fast response and low immersion depth requirements, and it is delivered in an aluminum case. A system calibration certificate for indicator plus sensor can be ordered separately.
Features
- Pt100 reference sensor, STS-100 series
- -150 to 650 °C (-238 to 1207 °F) range
- 4 mm overall diameter (code A)
- 250 mm straight probe (code 250)
- NPL traceable certificate (code G)
- For DTI-1000, DTI050 and JOFRA calibrators
- Fast response, low immersion depth
- Supplied in aluminum carrying case
Applications
- Reference temperature measurement in dry-block calibrators
- Verification of temperature calibrators and baths
- Traceable field and laboratory temperature calibration
Ametek Jofra STS100A250DG Probe Technical Specifications
| Series | JOFRA STS-100 |
|---|---|
| Sensor | Pt100, solid |
| Temperature range | -150 to 650 °C (-238 to 1207 °F) |
| Probe diameter | 4 mm (code A) |
| Probe length | 250 mm straight (code 250) |
| Certificate | NPL traceable (code G) |
| Case | Aluminum |
| Compatible indicators | JOFRA DTI-1000, DTI050 |
| Order code | STS100A250DG |
Manufacturer information: STS Reference Sensors on ametekcalibration.com.
