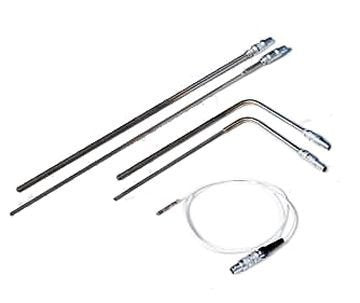

Ametek Jofra STS100A250DH Reference Sensor, Pt100, -150 to 650 °C
$925.00
Skip to product information
Ametek Jofra STS100A250DH Reference Sensor, Pt100, -150 to 650 °C
$925.00
Ametek Jofra STS100A250DH Reference Sensor
Overview
STS reference sensors are used as the true-temperature reference in handheld, liquid bath and dry-block calibration. Combined with a JOFRA readout they provide traceable, high-accuracy measurements.
The STS-100 A version offers the tightest accuracy class in the range, and the sensor memory stores its calibration data.
Features
- Pt100 reference sensor
- Range -150 to 650 °C
- Straight 250 mm probe
- 2 m cable
- DANAK accredited calibration certificate
- For JOFRA calibrators and readouts
Applications
- Reference for dry-block calibrators
- Liquid bath comparison calibration
- Temperature lab reference
Ametek Jofra STS100A250DH Reference Sensor Technical Specifications
| Sensor | Pt100 |
|---|---|
| Range | -150 to 650 °C |
| Probe | Straight, 250 mm |
| Cable | 2 m |
| Certificate | DANAK accredited |
| Series | STS-100 A |
Manufacturer information: STS reference sensors on ametekcalibration.com.
