Additel ADT878-425 Reference Dry Well Calibrator, 33 to 425 °C, No Insert, 110 V
Additel ADT878-425 Reference Dry Well Calibrator, 33 to 425 °C, No Insert, 110 V

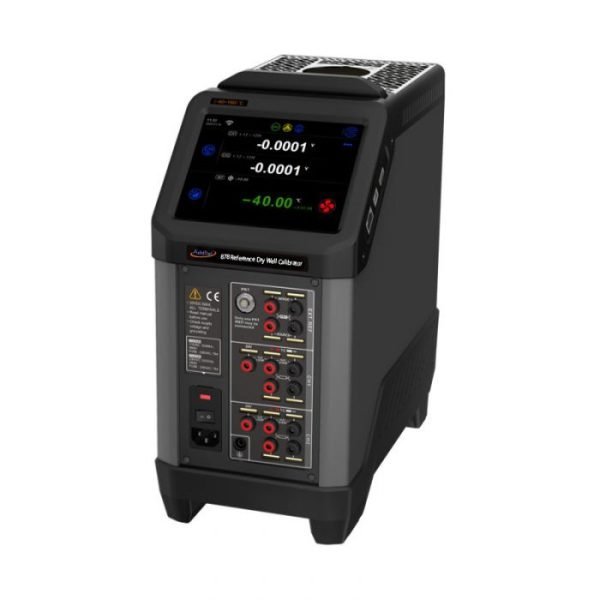

Additel ADT878-425 Reference Dry Well Calibrator
Overview
The ADT878-425 is the mid-range model of the Additel 878 reference dry well family, covering 33 to 425 °C at 23 °C ambient. Reference-level accuracy and stability, dual-zone control, set-point control by reference and the automated self-calibration routine keep the well traceable without manual recalculation of long-term drift.
A 6.5 in color touchscreen, Wi-Fi, Bluetooth, USB and RJ45 connectivity and an ISO 17025 accredited calibration with data are standard. The Process Calibrator option adds a reference PRT input, two UUT channels for mA, voltage, switch, RTD or thermocouple measurement, and a full HART communicator. This unit ships without an insert and is configured for 110 V power.
Features
- Temperature range 33 to 425 °C (at 23 °C ambient)
- Display accuracy ±0.2 °C at full range
- Stability ±0.020 °C at 425 °C
- 0.001 °C resolution
- 6.5 in color touchscreen with dual-zone control
- Set-point control by reference and self-calibration
- Thermal shield included for high-temperature wells
- ISO 17025 accredited calibration with data included
Applications
- PRT and thermocouple calibration at high temperature
- Secondary temperature laboratory work
- ISO 17025 accredited calibration programs
What's in the Box
- ADT878-425 dry well (no insert)
- Thermal shield
- Power cable
- USB cable
- Insert removal tool
- ISO 17025 accredited calibration with data
Additel ADT878-425 Reference Dry Well Calibrator Technical Specifications
| Temperature range | 33 to 425 °C (at 23 °C ambient) |
|---|---|
| Display accuracy | ±0.2 °C at full range |
| Stability (30 min) | ±0.020 °C at 425 °C |
| Axial uniformity (60 mm) | ±0.10 °C at 100 °C; ±0.25 °C at 425 °C |
| Resolution | 0.001 °C |
| Immersion depth | 193 mm (7.60 in) |
| Heating / cooling time | 15 min (23 to 425 °C); 24 min (425 to 100 °C) |
| Display | 6.5 in (165 mm) color touchscreen |
| Communication | USB A, USB B, RJ45, Wi-Fi, Bluetooth |
| Power | 90-254 VAC, 45-65 Hz, 1400 W; this unit 110 V |
| Weight | 9.7 kg (21.4 lb) |
Manufacturer information: Additel 878 on additel.com.
