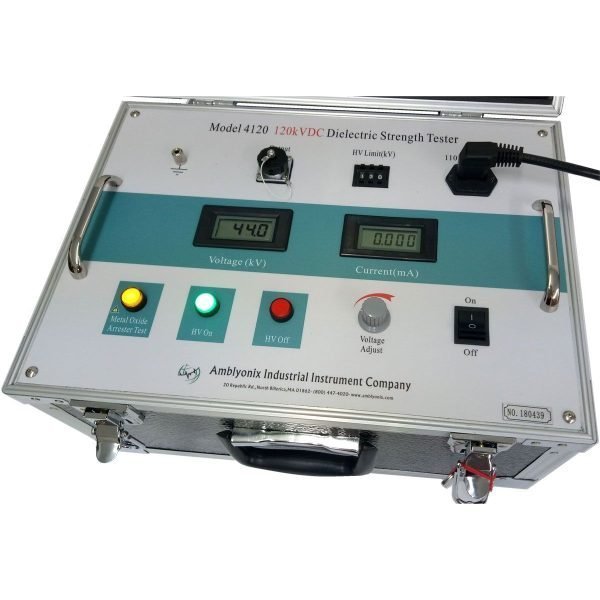

Amblyonix 4120 High Voltage

Amblyonix 4120 High Voltage

Overview

Designed for voltage detection and safety, the Amblyonix 4120 High Voltage is a practical, professional instrument. Highlights: featuring the latest in pulse width modulation technology.

• Featuring the latest in pulse width modulation technology, the
• 4120 employs a high frequency power source and voltage/current feedback circuits to product a stable, high voltage output with low ripple
• A front panel feature, unique to the Model 4120 allows the operator to test Metal Oxide Arresters quickly and accurately
• Another feature that is as unique as it is useful is a high-voltage dc micro-ammeter use to test leakage currents on the high-voltage side of the insulation testing circuit
• Features Pulse width Modulation (PWM) technology
• Stable, high-precision voltage adjustment
• Comprehensive nanosecond threshold protection
• Unique Metal oxide test function Adjustable overvoltage protection feature
• Current limiting resistor for capacitive load testing
• Shielded HV micro-ammeter accessory Shorting rod for grounding output after testing > Specifications
• Rated voltage:
• 120 kVDC Rated current:
• 5 mADC Rated power:
• 360 W Weight:
• Power supply:
• 120 VAC ±10%, 60 Hz Dimensions (Control Unit):
• 16.25 x 15.5 x 7.5 Output voltage accuracy:
• 1.0% reading, ±2 digits) Output current accuracy:
• 1.0% reading, ±2 digits) Ripple factor:
• 0.5% Working mode:
• Intermittent use, 30 minutes under rated load Overload Voltage:
• The no-load voltage can exceed the rated voltage 10% for 10 minutes
• Overload Current:
• The maximum charge current is 1.25 times of the rated current
• Operating environment:
• Temperature 14°F to 104°F Humidity:
• To ?85%RH for temperatures under 77°F, non-condensing Altitude:
• Under 4,900 > Each Unit Includes Manual, power cord, and NIST Traceable Certificate of Calibration
