Overview

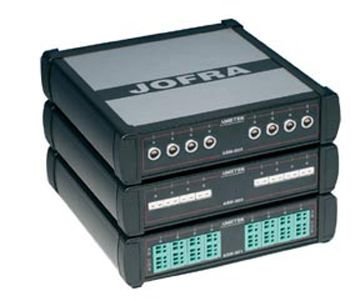

The ASM-800 system handles 2-, 3- and 4-wire RTDs, thermocouples, transmitters, thermistors, temperature switches and voltage signals, and stacking up to three units expands coverage to 24 sensors, with channel 1 reserved for the temperature reference sensor. True Ohm measurement drives a 4-wire measurement at 0.8 mA and reads the error EMF at zero current to cancel thermal EMFs, and ASM-801 and ASM-803 units (A and B) provide 24 V loop power for 4-20 mA transmitters. The reference sensor input accuracy is 0.026°C, and the scanning rate reaches 5 channels per second.
JOFRA CAL software (JOFRACAL) plans and executes simultaneous semi-automatic calibration of up to 24 pressure and temperature devices under test, storing results and audit-trail certificates, while JOFRALOG logs data from the multi-scanner to Microsoft Excel-compatible files. Connection is by RS-232, power comes from a 90-254 V, 45-65 Hz mains adapter, and order numbers combine the model (ASM801), version (A basic or B with measuring), certificate (F traceable or H accredited) and options such as a carrying case.
Features
- 8 universal screw-terminal inputs with B-version measuring
- B model measures voltage to 10 V, resistance to 4 kΩ, current to 24 mA
- Up to 24 sensors with three stacked units
- True Ohm measurement: 4-wire at 0.8 mA with EMF correction
- 24 V loop power for 4-20 mA transmitters
- Reference sensor input accuracy 0.026°C; 5 channels/s scanning
- JOFRACAL calibration and JOFRALOG logging software
Applications
- Semi-automatic calibration of RTDs, thermocouples and transmitters
- Multi-sensor calibration with JOFRA dry-blocks, baths and STS probes
- Data logging from up to 24 sensors into Excel-compatible files
What's in the Box
- ASM signal multi-scanner
- Power supply (mains adapter)
- Traceable certificate
- RS-232 serial cable
- Screwdriver (ASM-801 only)
- Reference manual
AMETEK Jofra ASM801BXXX Signal Multi-Scanner, 8-Channel (ASM-801 B Version) Technical Specifications
| Model version | ASM-801 B (built-in measuring circuits) |
|---|---|
| Inputs | 8 universal screw-terminal channels |
| Measured values (B model) | Voltage to 10 V; resistance to 4 kΩ; current to 24 mA |
| System capacity | Up to 24 sensors with 3 stacked units |
| Reference sensor input accuracy | 0.026°C |
| True Ohm measurement | 4-wire, 0.8 mA, error-EMF reading |
| Loop power | 24 V for 4-20 mA transmitters |
| Scanning rate | Max 5 channels per second |
| RTD accuracy (4-wire) | 2.5 ppm rdg (0-400 Ω); 15 ppm rdg (400-4000 Ω) |
| Mains adapter | 90-254 V, 45-65 Hz |
| Interface | RS-232 |
| Software | JOFRACAL calibration; JOFRALOG data logging |
| Sensor types | 2/3/4-wire RTD, TC, thermistor, transmitter, switch, V/I |
Manufacturer information: ASM-800 series datasheet on ametekcalibration.com.
