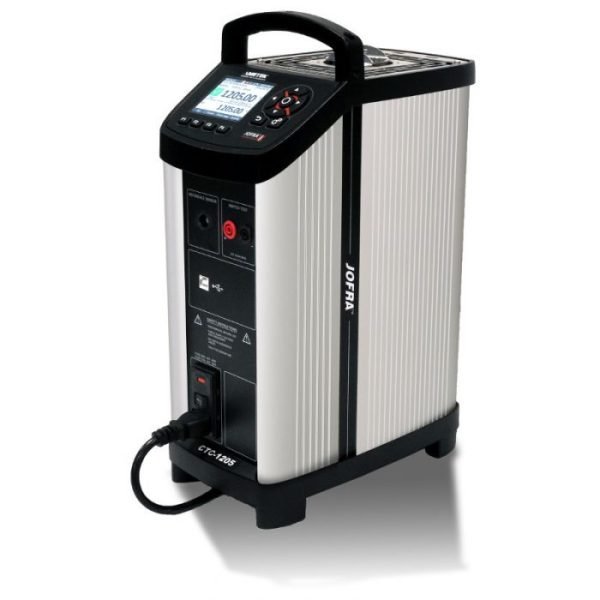

Ametek Jofra CTC-1205-A-XXX Dry Block Calibrator, 100 to 1205°C, 230 V
Ametek Jofra CTC-1205-A-XXX Dry Block Calibrator, 100 to 1205°C, 230 V
Ametek Jofra CTC-1205-A-XXX Dry Block Calibrator
Overview
The CTC-1205 is AMETEK's compact dry-block for high-temperature sensor calibration, covering 100 to 1205°C (212 to 2201°F). Its heated well gives ±0.1°C stability, the block reaches 1205°C in about 50 minutes and cooling back to 50°C takes about 45 minutes, so a multi-point check fits into a working shift.
A color display shows set point, stability status and recalibration reminders, with one-key access to set, preset, auto step and switch test functions. MVI circuitry keeps the block stable despite fluctuating shop power, and the insert dimensions match the CTC-1200 so existing hole patterns can be reused.
Features
- 100 to 1205°C (212 to 2201°F) temperature range
- ±2°C accuracy and ±0.1°C stability
- Heats to 1205°C in 50 minutes; 45-minute cooling
- One-key set, preset, auto step and switch test functions
- MVI circuitry stabilizes output on noisy mains power
- Color multi-information display with recalibration reminders
- USB 2.0 interface with JofraCal calibration software
- Single-hole insert included; protective carrying case available as an option
Applications
- Furnace, oven and heat-treat sensor calibration
- Plant maintenance of high-temperature probes
- On-site calibration where liquid baths are impractical
What's in the Box
- Tool for insertion tubes
- User manual
- Test cables (1 red, 1 black)
- USB cable
- JofraCal calibration software
- Mains power cable (230 VAC)
- Single-hole insert
Ametek Jofra CTC-1205-A-XXX Dry Block Calibrator Technical Specifications
| Temperature range | 100 to 1205°C (212 to 2201°F) |
|---|---|
| Accuracy | ±2°C (±3.6°F) |
| Stability | ±0.1°C |
| Heating time | 23 to 1205°C in 50 minutes |
| Cooling time | 1205 to 300°C and 300 to 50°C, 45 minutes each |
| Time to stability | 15 minutes (typical) |
| Immersion depth | 110 mm (137 mm with insulation plug) |
| Well diameter | 27 mm |
| Insert | Single-hole insert (XXX), 25 mm × 155 mm |
| Reference input | None (A version) |
| Mains power | 230 VAC (180-254 V), 50/60 Hz, 650 VA |
| Interface | USB 2.0; JofraCal software |
| Operating temperature | 0 to 50°C; IP-10 |
| Dimensions / weight | 248 × 148 × 390 mm; 7.1 kg |
Manufacturer information: CTC-1205 datasheet on ametekcalibration.com.
