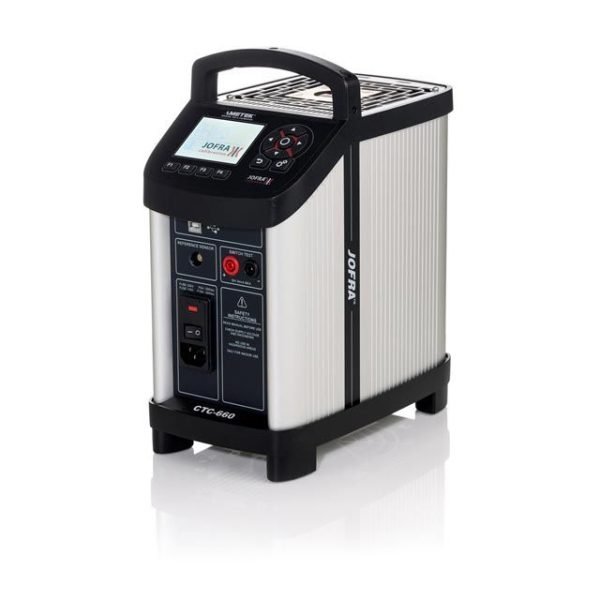

Ametek Jofra CTC-660 Dry Block Calibrator, 28 to 660 °C, compact calibrator
Ametek Jofra CTC-660 Dry Block Calibrator, 28 to 660 °C, compact calibrator
Ametek Jofra CTC-660 Dry Block Calibrator
Overview
The CTC series is Jofra's industrial compact temperature calibrator, built for on-site and maintenance-shop calibration. The CTC-660 spans 28 to 660 °C with an accuracy of ±0.85 °C using the internal reference sensor, improving to ±0.45 °C when the optional external STS-120-A-966 reference sensor is fitted. MVI mains power variance immunity keeps the block stable even when supply voltage fluctuates in industrial environments.
Fast calibration is the priority: heating from 23 to 660 °C takes 18 minutes, time to stability is about 5 minutes, and set, preset, auto-step and switch test functions handle quick routines. The informative color display, USB 2.0 interface with JofraCal calibration software, interchangeable inserts and the heat shield supplied as standard round out the package for workshop duties.
Features
- Temperature range 28 to 660 °C
- ±0.85 °C accuracy with internal reference sensor
- ±0.45 °C accuracy with external STS-120-A-966 reference sensor
- ±0.08 °C stability, 0.01 °C resolution
- Heats 23 to 660 °C in 18 minutes
- MVI mains power variance immunity
- Switch test, preset and auto-step functions (up to 12 steps)
- USB 2.0 interface with JofraCal calibration software
Applications
- Calibration of RTDs, thermocouples and temperature switches
- Instrument shop verification of temperature sensors
- On-site calibration of process temperature instrumentation
What's in the Box
- CTC dry-block calibrator
- Mains power cable
- Traceable certificate of temperature performance
- Tool for insertion tubes
- User manual
- Test cables (1 x red, 1 x black)
- USB cable
- JofraCal calibration software
- Heat shield
Ametek Jofra CTC-660 Dry Block Calibrator Technical Specifications
| Temperature range | 28 to 660 °C (82 to 1220 °F) |
|---|---|
| Accuracy, internal reference | ±0.85 °C at 660 °C; ±0.65 °C at 200 °C |
| Accuracy, external reference | ±0.45 °C at 660 °C; ±0.40 °C at 200 °C (STS-120-A-966) |
| Stability | ±0.08 °C |
| Resolution | 0.01 °C (1, 0.1 or 0.01 selectable) |
| Radial homogeneity | 0.1 °C at 660 °C |
| Heating time | 23 to 660 °C in 18 minutes |
| Cooling time | 660 to 100 °C in 39 minutes |
| Well diameter | 26 mm |
| Immersion depth | 115 mm incl. insulation plug |
| Weight | 6.1 kg |
| Dimensions | 248 x 148 x 305 mm |
| Mains power | 115 V (90-127) or 230 V (180-254) VAC, max 1150 VA |
| Interface | USB 2.0 with JofraCal software |
| Insert dimensions | 25.7 mm x 120 mm, brass |
Manufacturer information: AMETEK Calibration: CTC Series page.
